Smart Night Purge: dashboard

Path:	, Smart Night Purge, Dashboard page

Purpose	This page shows Smart Night Purge real-time trends and status.
Description	-
What to do first	Set operations. See the Settings page.

Page description

Page area descriptions

Area

Description

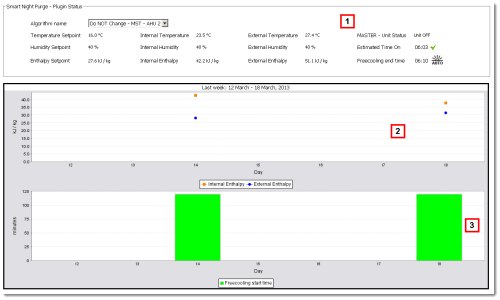

Area with Smart Night Purge and connected unit real-time data and status

Following is a description of some data:

Estimated ON time: time calculated to start free cooling. The icon appears if free cooling is on
End free-cooling time: time when free cooling ends. The icon appears if the time is linked to GeoLighting calculations.

Smart Night Purge can be started at any time but will only run during the period between Plug-in deployment start date and Plug-in deployment end date. When not running, the following alert appears next to the Algorithm name drop-down menu:

“*** Plug-in not running: currently out of set operating period ***”.

Current Smart Night Purge trend is displayed in two ways:

KJ/kg: outdoor and indoor enthalpy trend on each day in the last week
Minutes: actual length of free cooling on each day in the last week

Action

Other actions

	Start Smart Night Purge
	Stop Smart Night Purge
	Update Smart Night Purge
